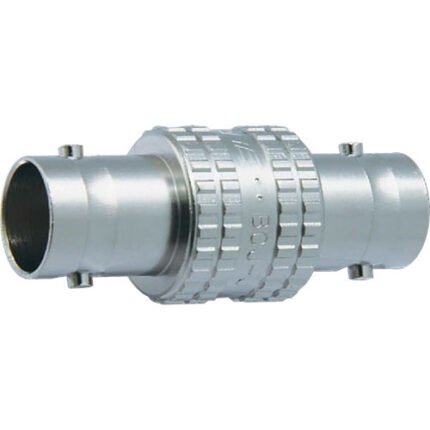

BCJ JK BNC CONNECTOR

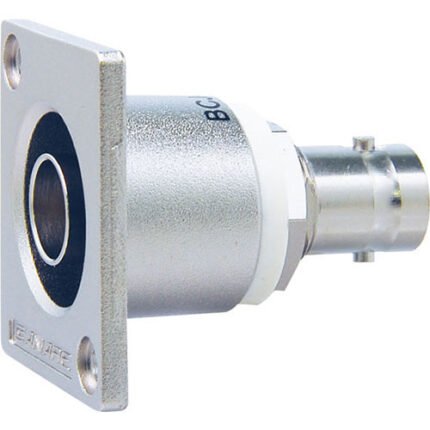

BCJ-JRUK BNC CONNECTOR

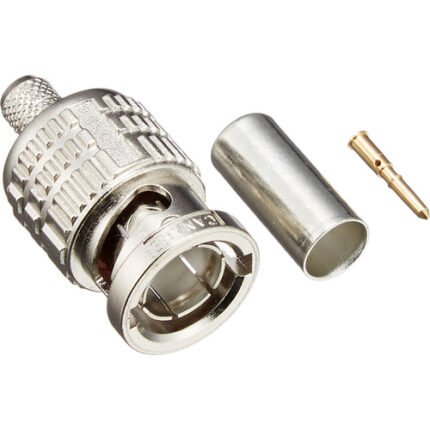

BCP-A77 CONNECTOR
|
Canare added the new BCP-D series for 12G-SDI. SMPTE ST 2082-1 fully compliant connector makes UHD solutions as simple as existing SDI systems. The world’s highest quality BNC includes BCP-B for 3G-SDI, BCP-A/C for up to HD.
|
| Key Features |
| Three Piece Crimp Type Connectors for use with Standard and Canare Type Coaxial |
| MIL-C-39012 Spec with 75 Ohm Performance To Address The Latest Generation of High Bandwidth Video Equipment |
| Offers High Return Loss (>26dB) and Low VSWR (+/-1.1), DC to 2GHz |
| Features Special Elongated Body Handle for Firm Grip and Extra Finger Comfort |
| Gold Plated Center Crimp Pins |
| Use with Canare LV-77S or Belden 8281F coax |

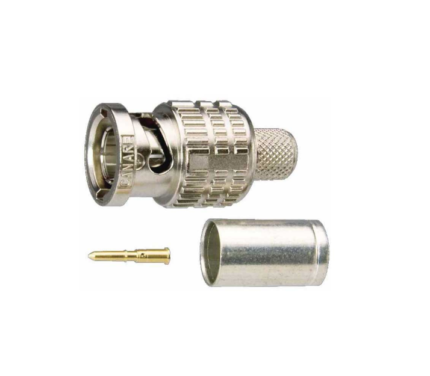

BCP-B25HD CONNECTOR

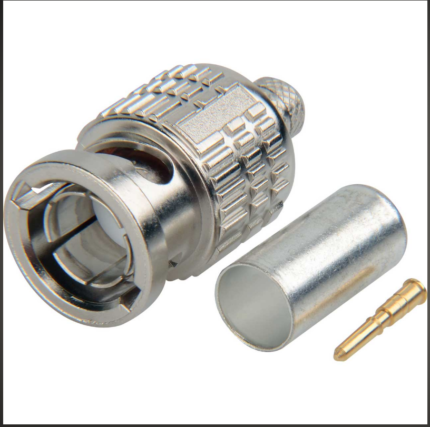

BCP-B31F CONNECTOR

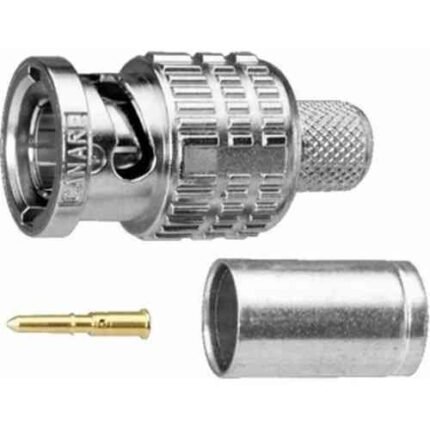

BCP-B3F CONNECTOR
BCP-B51F CONNECTOR

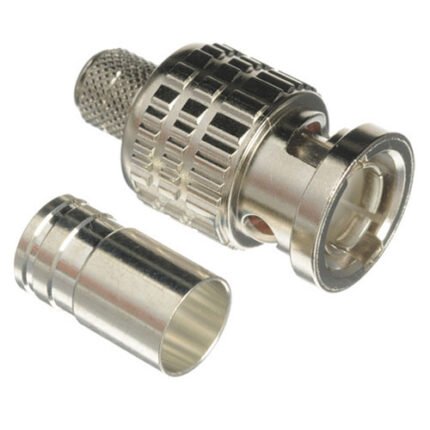

BCP-B53 CONNECTOR

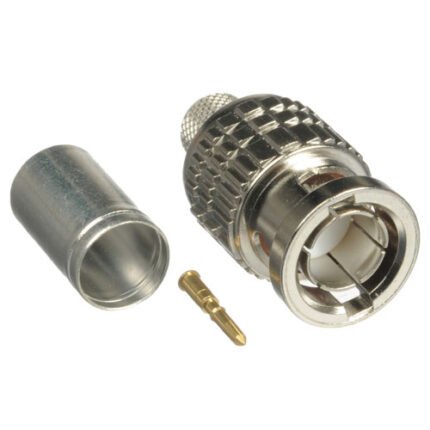

BCP-B5F CONNECTOR

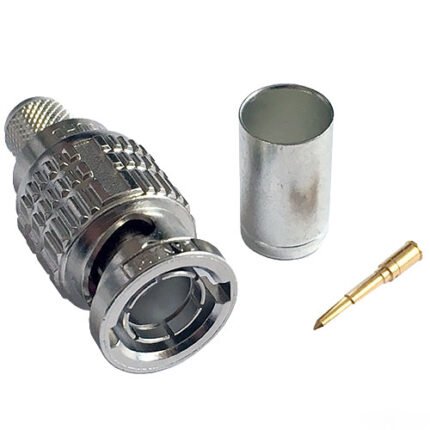

BCP-D55 UHD CONNECTOR
| Canare BCP-D55UHD 75-Ohm BNC Male Crimp Connector for L-5.5CUHD Cable |
| Key Features |
| For Canare L-5.5CUHD 12G-SDI Cables |
| 75-Ohm BNC Male Connector |
| Crimp Design for Fast Installation |
| 12G-SDI 4K UHD Capable |
| DC to 3 GHz: >26 dB Return Loss |
| Gold-Plated Center Pin, with Snap Lock |
| Body Marked for Easy Lock Check |
